 ULTRAPROBE® 9000
How Ultrasonic Technology Works for You
Digital Ultrasonic Inspection System...
The Ultimate Inspection
Tool:
All the advantages of Digital with the feel of Analog
The Ultraprobe 9000 is a Digital Ultrasonic Inspection, Information Storage
and Retrieval System that is so versatile, so easy (most operators are able to
use the Ultraprobe 9000 within 15 minutes) and so much fun to operate, youll be
looking for opportunities to use it every day. From the very instant you hold

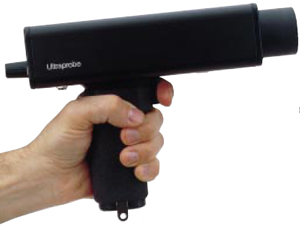

the Ultraprobe 9000 Digital Ultrasonic Inspection System in your hand, the feel
of the well balanced pistol grip, the elegance of simplicity and the clarity of
signal will convince you that this is truly a remarkable feat of engineering.
This Ultraprobe is ready to unleash the potential of any inspection program.
Your first glance at the easy to read display panel shows you something
special. You can see the calibrated decibel readout and a
16 segment bar
graph which instantly registers sound intensity changes and simultaneously
registers peak hold as
you scan.
With the Ultraprobe 9000, UE Systems engineering combines the
best of both
worlds: you can scan quickly as with the analog instruments and use digital
information to store and trend.
Plus UE Systems Spin and Click Technology makes all your adjustments fast
and simple.
UE Systems unique Spin and Click? Technology makes sophisticated inspection
processes so simple, so quick, youll be amazed at how much you can accomplish
with only two controls. By just "spinning" and "clicking" you can:
- Locate and identify potential problems
- Store data
- Change frequency quickly
- Change sensitivity quickly
- Download data via RS232 output
- Adjust basic operation modes
- Select snap shot function
and more!
ULTRAPROBE? 9000 Features:
- Open Platform Software
- Interchangeable Modules
- Frequency Tuning
- Spin and Click? Technology
- Ultratrend? Sound Filtration
- 120 dB Dynamic Range
- Superior Application Support
- Acoustic Isolating
Headphones
- Environmentally Friendly Rechargeable Batteries
- Easy Interface for most Vibration Analyzers including: SKF, ENTEK, DLI,
CSI, DI
- Developed by The IndustryLeader in Airborne Ultrasound
Typical ULTRAPROBE Applications
Data Based Mechanical Inspection/Trending
- Bearing Condition
- Rubbing Conditions
- Cavitation
- Gears/Gear Boxes
- Pumps/Motors
- Lack of Lubrication
Data Based Leak Detection/Energy Audits
- Compressed Air
- Compressed Gases (O2, NO, etc.)
- Vacuum Leaks
- Seals & Gaskets
- Condenser Tubes
- Cockpit Windows
- Hatches
- Boilers
- Heat Exchangers
- Valves
- Steam Traps
Data Based Electrical Inspection
- Arcing
- Tracking
- Corona
- Switchgear
- Transformers
- Insulators
- Relays
- Bus Bars
| ULTRAPROBE 9000 Specifications |
Construction: |
Hand-held pistol type made with coated aluminum and
ABS plastic |
Circuitry: |
Solid State Analog and SMD Digital Circuitry with
temperature compensation |
Frequency Range: |
20 KHz to 100 KHz (tunable in 1 KHz
increments) |
Response Time: |
< 10 ms |
Display: |
16 X 2 LCD with LED Backlight |
Memory: |
400 storage locations |
Battery: |
NIMH Rechargeable |
Operating Temperature: |
32°F to 122°F (0?C to 50°C) |
Output(s) |
Calibrated heterodyned output, decibel (dB),
frequency, RS-232 data output |
Probes: |
Trisonic Scanning Module and Stethoscope
Module |
Headset: |
Deluxe noise attenuating headphones |
Indicators: |
dB, Frequency, Battery Status, and 16 Segment Bar
Graph |
Sensitivity: |
Detects .005 (.127 mm) diameter leak @ 5psi (.34 bar)
at a distance of 50 ft. (15.24 m) |
Threshold: |
1 x 10-2 std. cc/sec to 1 x 10-3 std. cc/sec. |
Dimensions: |
Complete kit in zero haliburton aluminum carrying case
15 X 22 X 7
(38.1 X 55.9 X 17.8 cm) |
Weight: |
Pistol Unit: 2 lbs. (.9 kg)
Complete carrying case:
14 lbs. (6.4 kg) |
Warranty: |
1 year parts/labor standard, 5 years with returned
completed warranty registration. |
Display Modes: |
Real Time and Snap Shot |
|
|
